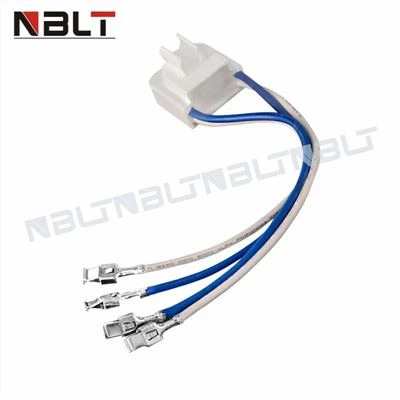

This defrosts bi-metal thermostat is for refrigerators. Defrost bi-metal thermostat ELTH 002 3003A protects the evaporator from overheating during the defrost cycle. Safely store any food that could deteriorate while the power is off. Unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
ltem NO | ELTH-002 3003A |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
What does a refrigerator thermostat do?
The thermostat controls the cooling process by monitoring the temperature and then switching the compressor on and off. When the sensor senses that it's cold enough inside a refrigerator, it turns off the compressor. If it senses too much heat, it switches the compressor on and begins the cooling process again.
