Compatible For Whirlpool Refrigerator Defrost Thermostat

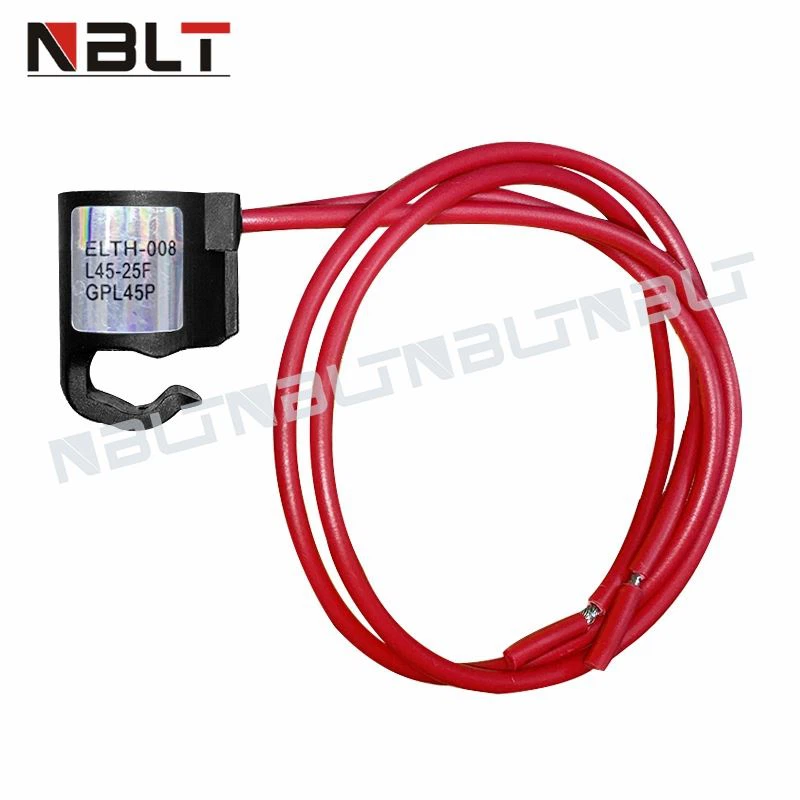

Compatible For Whirlpool ELTH-008 9178A Refrigerator Defrost Thermostat
This defrosts bi-metal thermostat (part number ELTH-008 9178A) is for refrigerators. Defrost bi-metal thermostat ELTH-008 9178A protects the evaporator from overheating during the defrost cycle. Safely store any food that could deteriorate while the power is off. Unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
Send Inquiry

Product Introduction

PRODUCT-INFORMATION

SAVE TIME AND SAVE MONEY: Inexpensive way to fix or repair a refrigerator. If your refrigerator does not defrost properly you can test both the thermostat and the heater to figure out which part is at fault. For this repair, you will need a Phillips screwdriver, a 1/4 inch nut driver, a flat blade screwdriver, a pair of wire strippers, a roll of electrical tape, and a few butt splice connectors,See more product details.

2(001)


SPECIFICATION

ltem NO

ELTH-008 9178A

Use

Defrost/Temperature control/Protection

Appliance

Refrigerators, Freezer

Reset type

Automatic

Basic material

Bakelite, Epoxy Resin, PA

Electric rating

250V 10A

Action temperature range

-30°C~90°C

Differential

According to the requirement

Insulation resistance

≥100MΩ

Tolerance

Refer to the regulation

Life cycle

100,000 times

Contact material

Silver

Dielectric Strength

Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.

Insulation Resistance

With a DC 500V megger, borne DC 500V, the tested value is over 10MW.

Resistance Between Terminals

Below 50mW

Temperature characteristics

Normal close, Normal open

Maximum Ambient Temperature

90°C

Diameter of Bimetal Disc

F12.7mm(1/2″)

Wire Leads

Color: Red Length: customized

Terminal type

Customized (Refer to our specification)

Cover/Bracket

Customized (Refer to our specification)

Sample Price

Free sample USD 50 freight charge, refund after mass order


PRODUCT-DETAILS

ELTH-008 9178Abi-metal thermostat _


APPLICATION-SCENARIO

(001)


How long should a refrigerator defrost cycle last?

Approximately 25 to 45 minutes.

During defrost, there will be no running sounds, no fan noise, and no compressor noise. Most models will defrost for approximately 25 to 45 minutes, usually once or twice a day. You may hear water dripping or sizzling as it hits the heater. This is normal and helps evaporate the water before it gets to the drip pan.


FAQ_01
