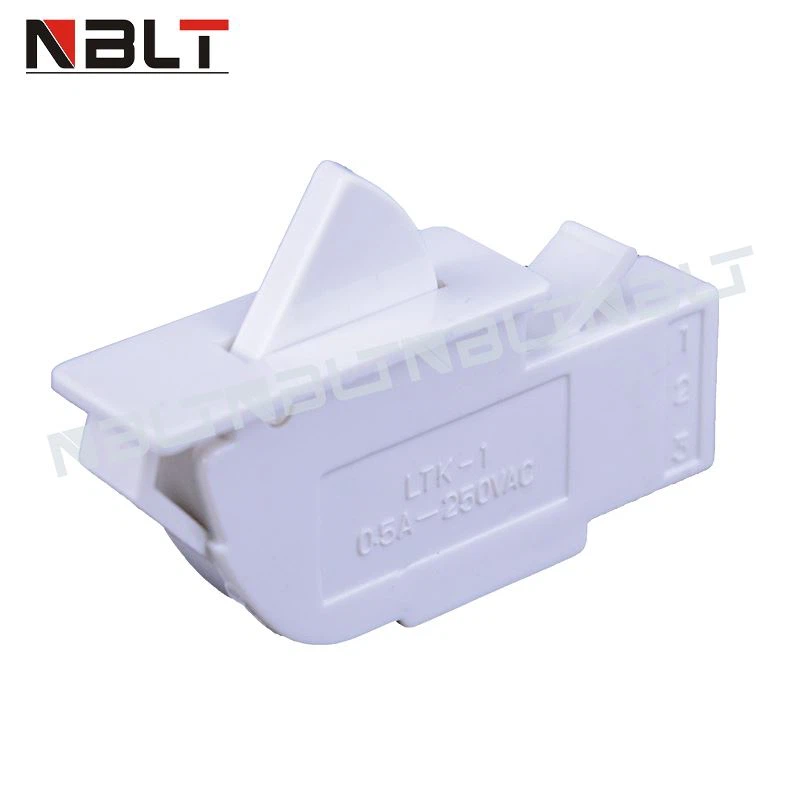

This switch activates the refrigerator light when the door is open.
It also prevents the dispenser from working if the door is open.
Suitable for Samsung Refrigerator Door Switch.
Kenmore Refrigerator Door Switch.
LG Refrigerator Door Switch.

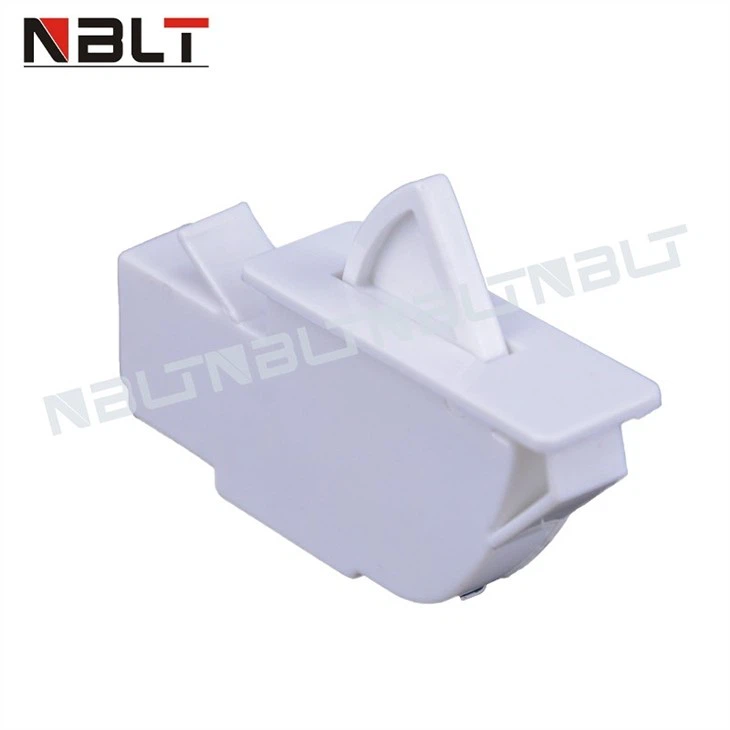

ltem NO | LTDS-1(02138) |
Use | Refrigerator Door Switch |
Appliance | refrigerators, freezer |
Function | Power control |
Voltage | 250V |
Amperage | 0.5A |
Max. Operating Temperature | 60°C |
Min. Operating Temperature | -25°C |
Therminal Style | Flat and fast connected pin |
Tolerance | Refer to the regulation |
Sample Lead Time | 5 days |
Humidity | 10%~95% |
Warranty | one year |
Rated frequency | 50/60Hz |
OEM,ODM | ODM,OEM |
Outside surface | The exposed surface shall be smooth and finished, without the defects of blistering, crack, lack of materials, swelling and information, etc. the marking shall be legible and durable |
Color | white |
Payment method | 30% deposit , balance paid by T/T before shipment |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
Why do fridges have light switches?
The reason the light comes on is the switch near the hinge side of the door. It's usually a spring-loaded 'button'. The light bulb puts out heat so you don't want it on all the time as it would make it harder to cool the inside of the fridge.
