Choice of Momentary Push-Pull (reset), Cheat interlock switches
Snap-in panel mounting
Snap-action mechanism
Various terminal forms are available
The interior light in your refrigerator is controlled by a switch that is activated when the door is opened and closed.
If your refrigerator light will not turn on, or stays on when the door is closed, you could have a faulty switch.

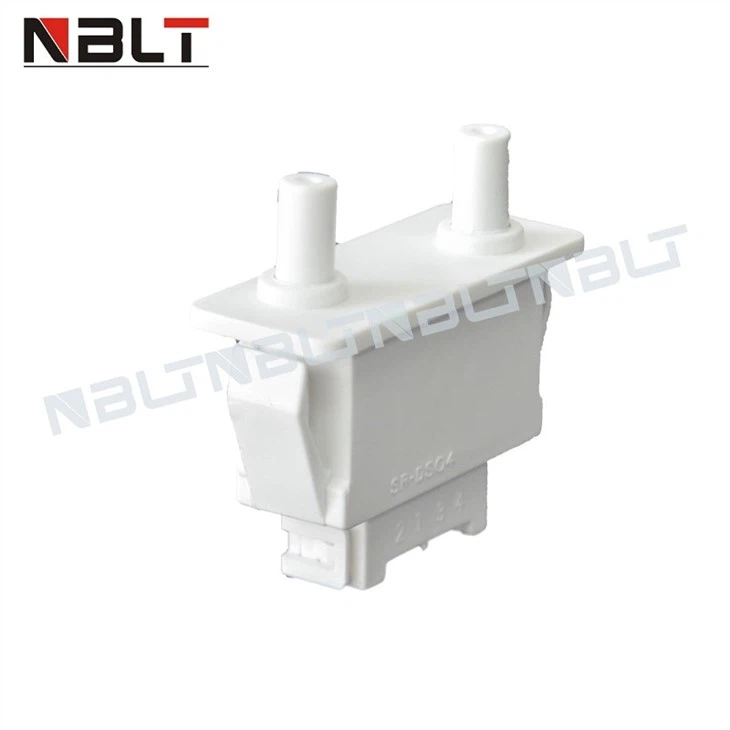

ltem NO | LTDS-6 4P(12068) |
Use | Refrigerator Door Switch |
Appliance | refrigerators, freezer |
Function | Power control |
Voltage | 250V |
Amperage | 0.5A |
Max. Operating Temperature | 60°C |
Min. Operating Temperature | -25°C |
Therminal Style | Flat and fast connected pin |
Tolerance | Refer to the regulation |
Sample Lead Time | 5 days |
Humidity | 10%~95% |
Warranty | one year |
Rated frequency | 50/60Hz |
OEM,ODM | ODM,OEM |
Color: | white |
Payment method | 30% deposit , balance paid by T/T before shipment |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
Outside surface | The exposed surface shall be smooth and finished, without the defects of blistering, crack, lack of materials, swelling and information, etc. the marking shall be legible and durable |
How do you test a refrigerator door switch?
The door switch activates your icemaker. So close the door wait 24 hours and if you do not have any ice then you know that your door switch is not working properly. And that's how you test.
