This repair guide gives step-by-step instructions on how to replace the defrost bi-metal thermostat in a top-freezer refrigerator. The defrost bi-metal thermostat shuts off the defrost heater if it gets hot enough to damage the evaporator. If the defrost bi-metal thermostat fails, the heating element doesn't turn on, and frost builds up on the evaporator. When the frost buildup is excessive, the refrigerator can't cool well. If the defrost bi-metal thermostat fails, replace it with a manufacturer-approved replacement part.

2(001)

SPECIFICATION

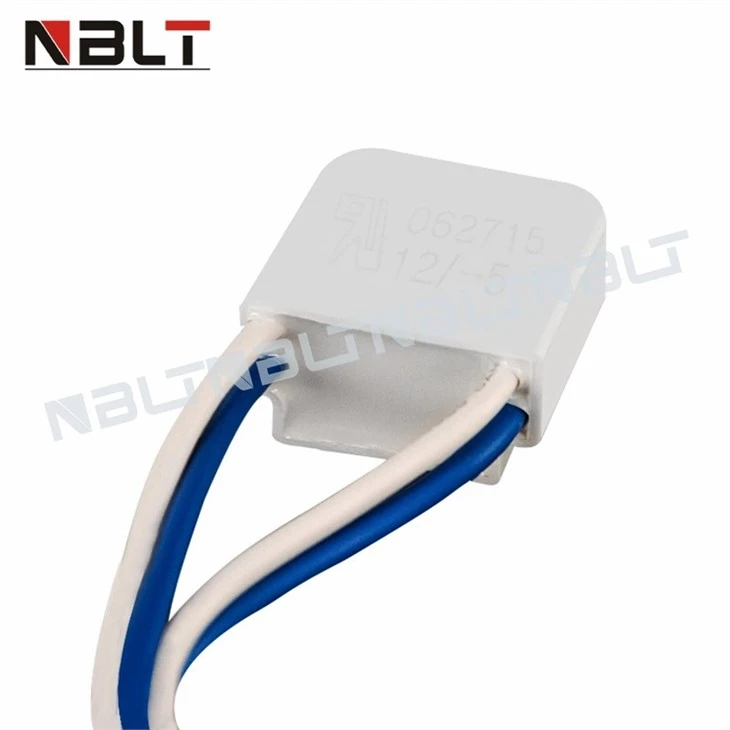

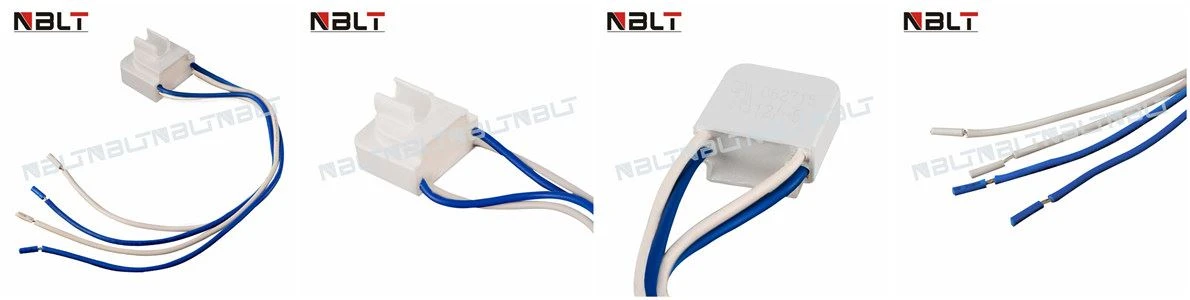

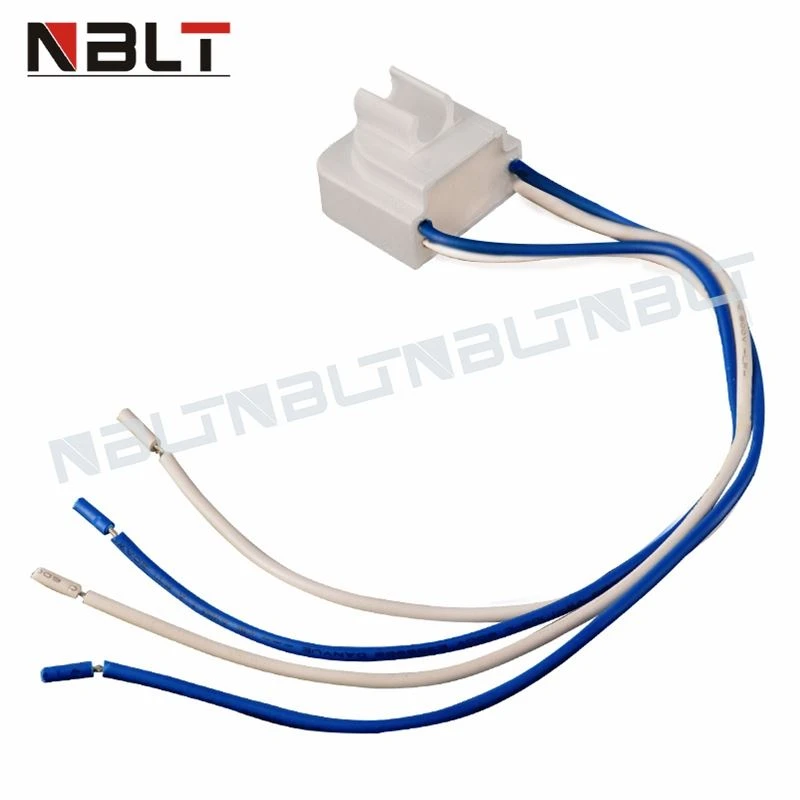

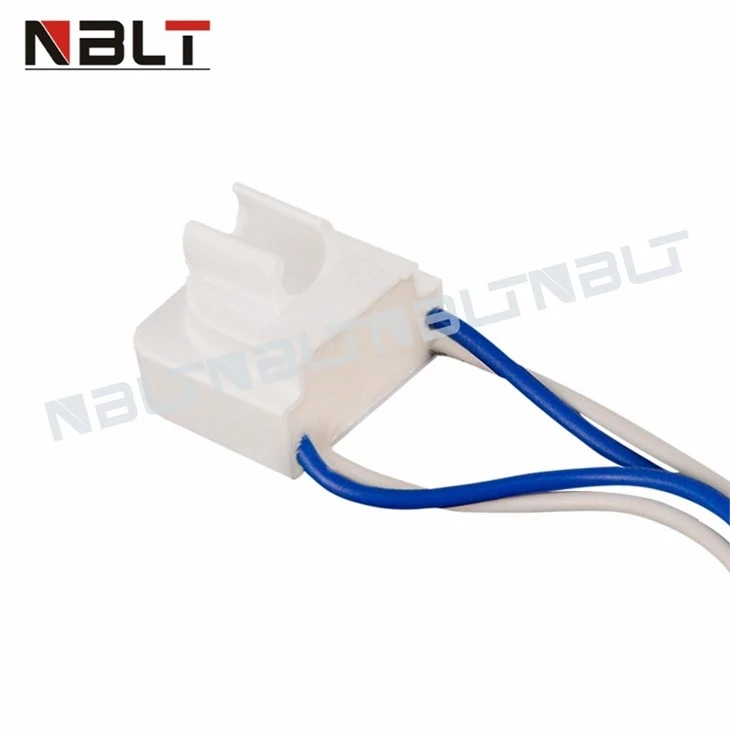

ltem NO	ELTH-001 20490
Use	Defrost/Temperature control/Protection
Appliance	Refrigerators, Freezer
Reset type	Automatic
Basic material	Bakelite, Epoxy Resin, PA
Electric rating	250V 10A
Action temperature range	-30°C~90°C
Differential	According to the requirement
Insulation resistance	≥100MΩ
Tolerance	Refer to the regulation
Life cycle	100,000 times
Contact material	Silver
Dielectric Strength	Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation Resistance	With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance Between Terminals	Below 50mW
Temperature characteristics	Normal close, Normal open
Maximum Ambient Temperature	90°C
Diameter of Bimetal Disc	F12.7mm(1/2″)

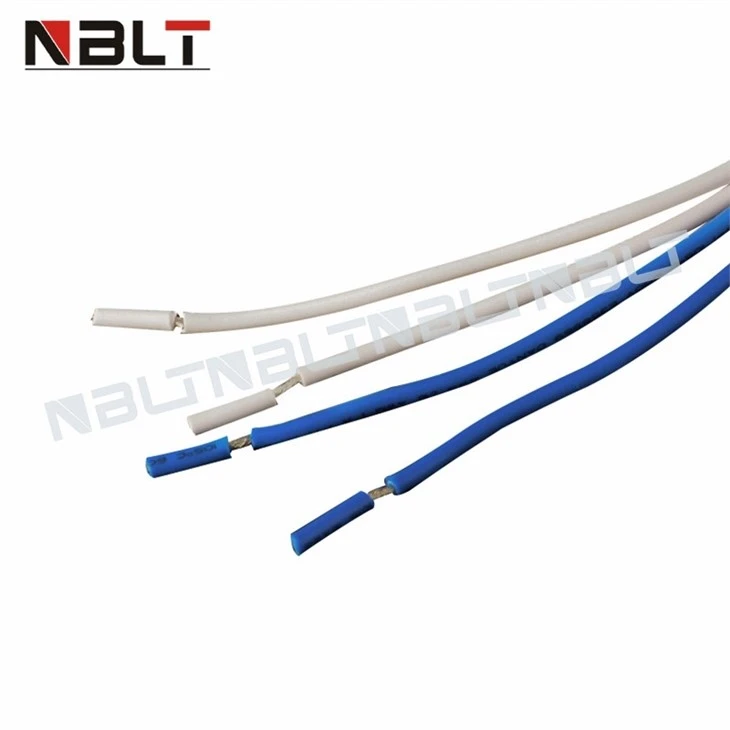

Wire Leads	Color: Red Length: customized
Terminal type	Customized (Refer to our specification)
Cover/Bracket	Customized (Refer to our specification)
Sample Price	Free sample USD 50 freight charge, refund after mass order
