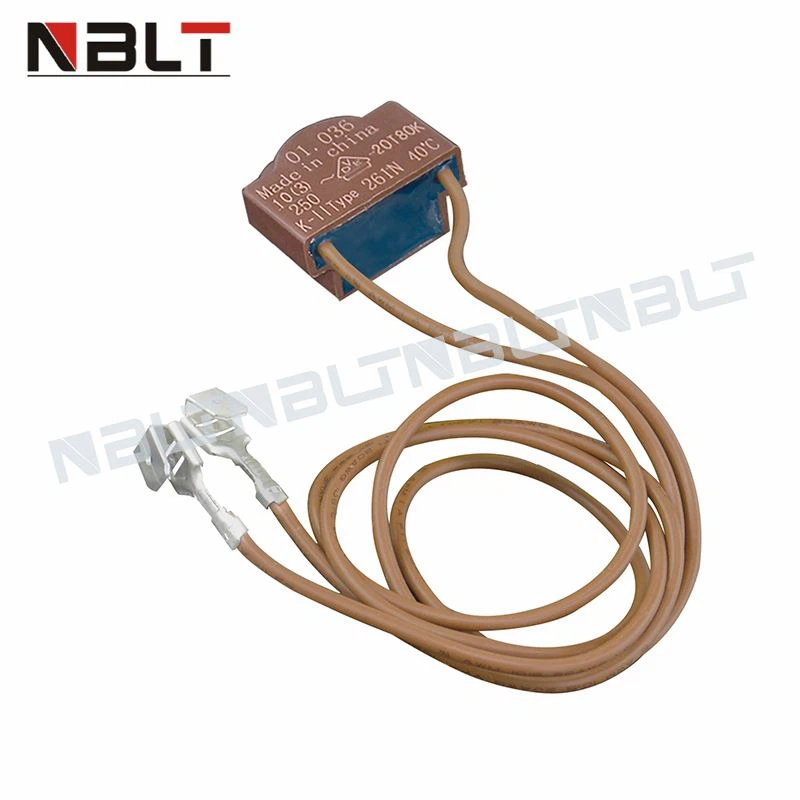

This defrosts thermostat 20T80K(part number ELTH-002 24693) is for refrigerators.
Defrost thermostat ELTH-002 24693protects the evaporator from overheating during the defrost cycle. Fridge K-11 Type 261N 40° Thermostat
Safely store any food that could deteriorate while the power is off. Unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
Key Specifications/ Special Features:
Description: Fridge K-11 type 261N 40°thermostat
Parameter: 250V AC 50/60Hz 10A
Packing: each packed in one small bag, 100 pieces per carton
Using range: refrigerating equipment
ltem NO | 20T80K ELTH-002 24693 |
Use | Defrost/Temperature Control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
Can a refrigerator work without a thermostat?
You can run a fridge without a thermostat. A thermostat is just an on/off switch for the compressor. When the temp reaches the point that you set it at, it goes one.
