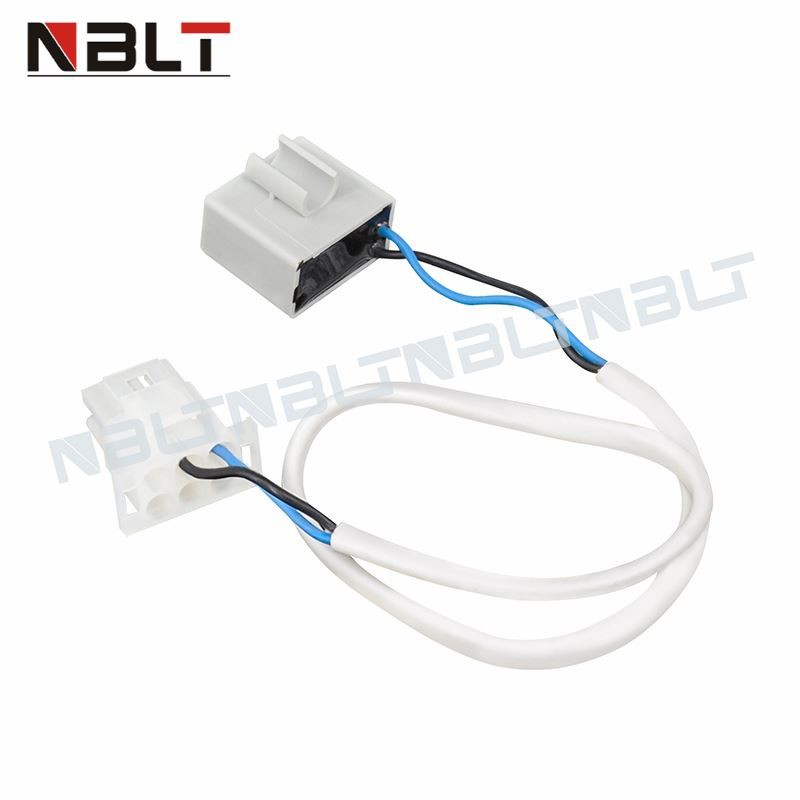

The C00276886 Refrigerator Defrost Thermostat clips onto the evaporator and protects your evaporator from overheating during the defrost cycle. If your refrigerator does not defrost properly you can test both the thermostat and the heater to figure out which part is at fault.
Description
Thermal defrost fuse or relay for a refrigerator with a NoFrost system 2-pin PTR-103 with a block and a jumper Suitable for a Stinol refrigerator
For models:B18FNFNXH, BI18NFL, BI18NFS, BIA161NF, BIA16NF, BIA16NFS, BIA16NFX, BIA181NF, BIA18NF, BIA18NFG, BIA18NFXH, BIA20NF, BIA20NFS, BIAA16NFUA, BIAA18NF1UA, BIAA18NFH, BIAA18NFUA, BIAA20NFUA, DF4160E, DF4160W, DF4160WUZ, DF4161W, ECF1814L, ECF2014L, ECF2014XL, HBM11803F, HBM11803NF, HBM11812F, HBM11812NF, HBM11813F, HBM11813NF, HBM11813NFH, HBM11813SF, HBM11813SFH, HBM11813SNF, HBM11813SNFH, HBM11813XF, HBM11813XNF, HBM11814F, HBM11814XNFH, HBM11822NFUA, HBM12013SFH, HBM12013SNFH, HBM12014F, HBM12014FH, HBM12014NF, HBM12014NFH, HBM12014XF, HBM12024MNFH, HF4180M, HF4180S, HF4180W, WTR4181WDF4160E DF4160W DF4161W DF4180E DF4180W DF4181W DF4200E DFE4160S DFE4200S DFE4200W EF16 EF16D EF18 EF18D BIA18NFG DFN 16 DFN 18 EF18S EF20 ITF 018 W ITF 020 W B18FNFNXH BI18NFL BI18NFS BIA161NF BIA16NF BIA16NFS BIA16NFX BIA181NF BIA18NF BIA18NFXH BIA20NF BIA20NFS BIAA16NFUA BIAA18NFH BIAA18NFUA BIAA20NFUA IBF181 IBF181S NB18.LFNF NB18FNFS NBA161FNF NBA16FNF NBA16FNFS NBA181FNF NBA18FNF NBA18FNFNXH NBA20FNF NBA20FNFS NBEA18FNFS DF4181X DF4201W DFM4180S BIAA18NF.1(UA)Hotpoint Ariston: HF4180M HF4180S HF4200S HF4200W HF4201XR HFE4180W HF 4200 M ECF1814L ECF2014L ECF2014XL HBM1180.3F HBM1180.3NF HBM1181.2F HBM1181.2NF HBM1181.3F HBM1181 .3NF HBM1181.3NFH HBM1181.3SF HBM1181.3SFH HBM1181.3SNF HBM1181.3SNFH HBM1181.3XF HBM1181.3XNF HBM1181.4F HBM1181.
ltem NO | C00276886 ELTH-009A 23343 |
Use | Defrost/Temperature Control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted in no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
How do I test my Samsung refrigerator defrost thermostat?
Place one of each of the meter's probes on each of the defrost thermostat wires while the thermostat is colder than the closing temperature. The thermostat should have continuity.
