Thermistor temperature sensors offer excellent reliability in a compact, rugged, cost-effective design. The sensor is also a proven performer for moisture protection and freeze-thaw cycling. Lead wires can be set to any length and color to match your requirements. The plastic shell can be made from PP, PBT, PPS, or most any plastic that you need for your application. The internal thermistor element can be selected to meet any resistance-temperature curve and tolerance.

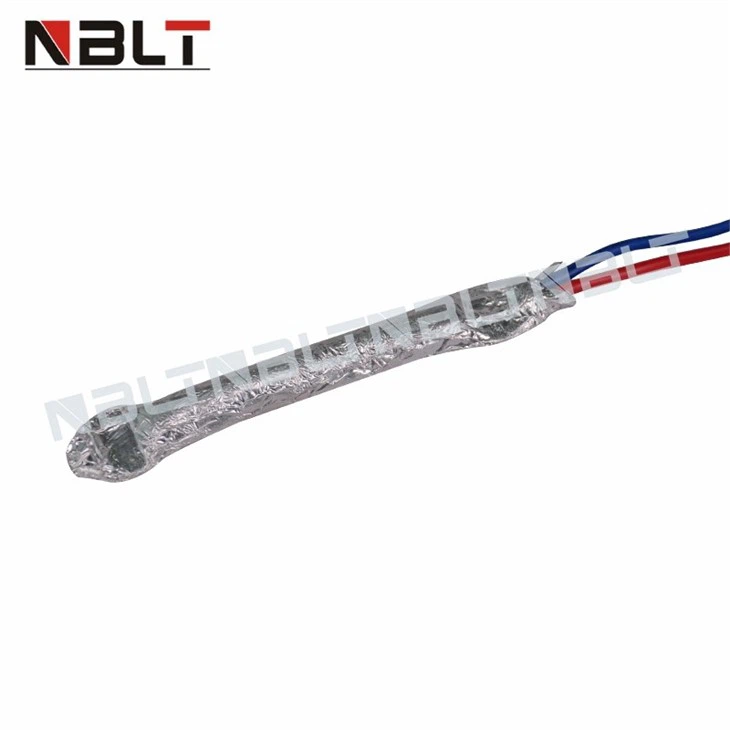

ltem NO | HB012 06190 |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
Is a defrost thermostat normally open or closed?
The defrost thermostat should be in a closed position when cold. Check to be sure the thermostat is opening at the correct temperature by placing it in water and slowly heating the water. Defrost thermostats are designed to open between 40 degrees and 90 degrees Fahrenheit.
