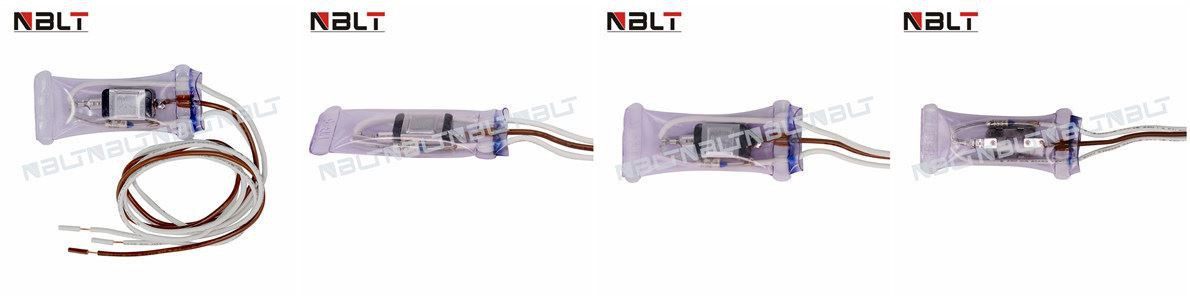

Defrost Cutout Thermostat & Thermal Fuse with Harness has unique technology having dual contact devices patented automatically reset at a preset temperature. An electrically isolated bimetal disc is used to either open or close the circuit current.
Description:
1. Easy to install in small or narrow spaces due to slim shape.
2. 3 wire leads, fuse, -14-celsius degree normally open.
3. Defrosted thermostats are a kind of thermal protector used in Air-cooling frostless refrigerators, also use as auto temperature limited switch and Heating compensated switch in the process of heating and defrosting in refrigerators.
4. Automatic temperature control for removing frost and for protecting the frozen rupture in the cold storage.
ltem NO | HB-003 3012A |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
How often should a refrigerator defrost?
To maintain the efficiency of a manual-defrost freezer, it should be defrosted each time it develops a quarter-inch of ice build-up on the interior walls. Many people defrost their freezers once a year, but you may find that you need to do yours more or less often depending on your usage habits.
