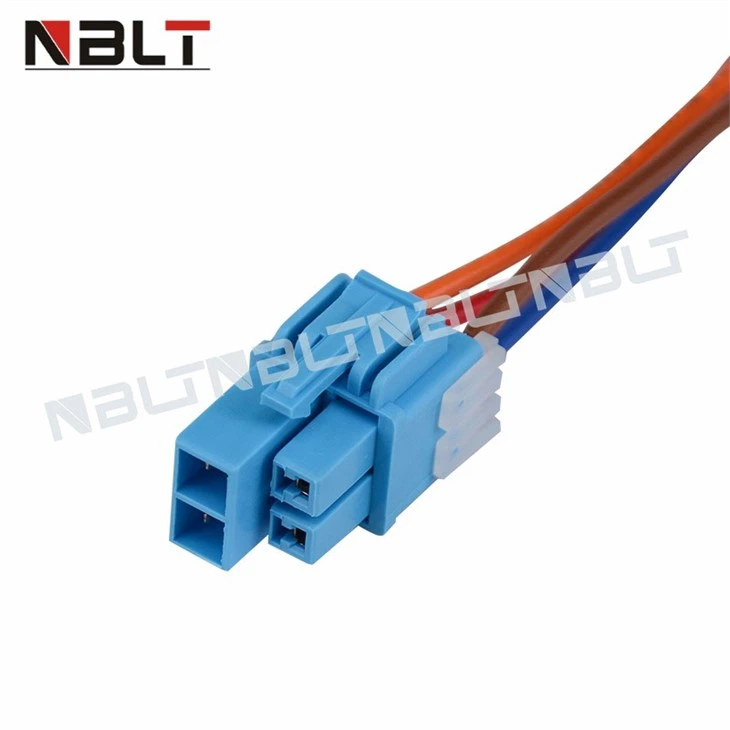

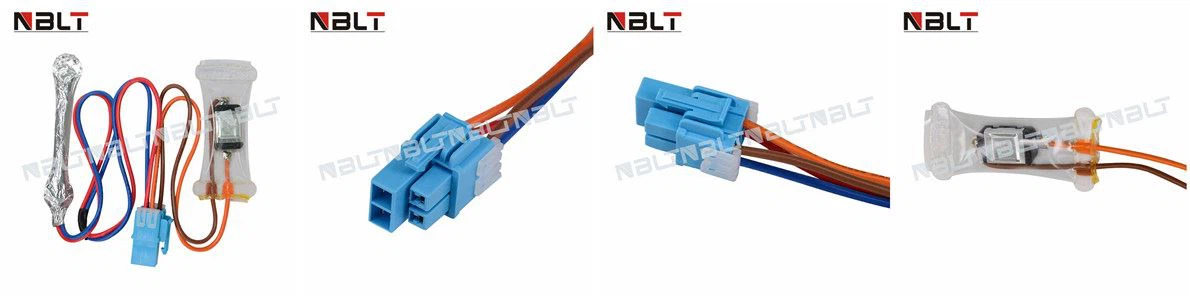

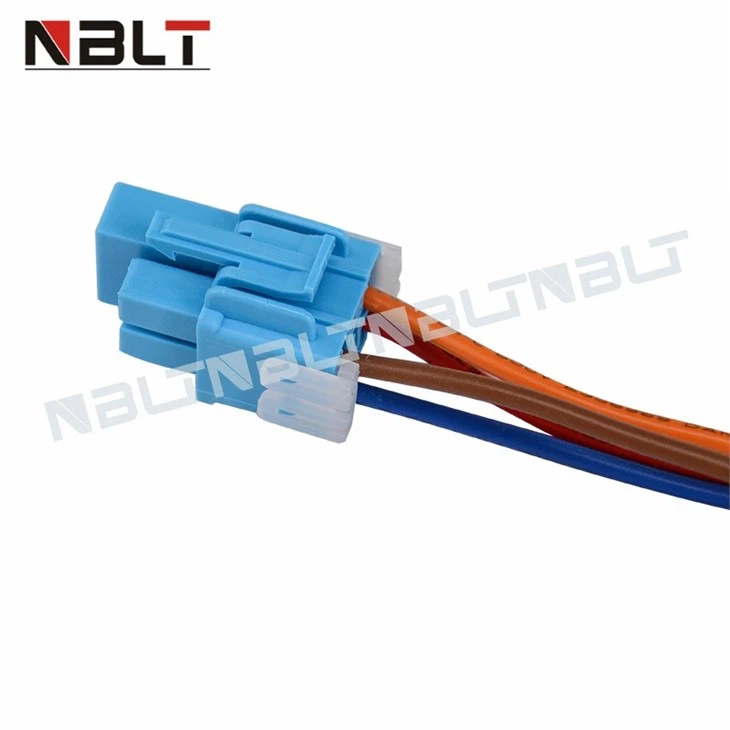

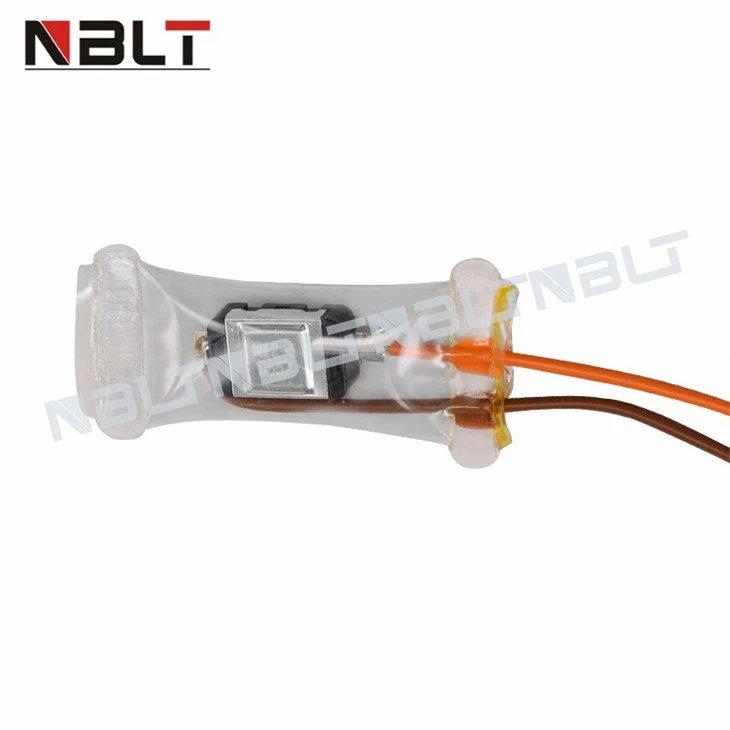

HB012 23346 series snap-action defrost thermostat is a kind of miniature waterproof and hermetically seal thermostat sensor. It is of a single-pole single-throw structure and works under resistive load. The thermostat is enveloped in cold-resistant and flame-retardant plastic tubes or sealing gum for possible underwater applications. The product series is widely used as a heating compensated switch or automatic defrosting control switch in air-cooling frostless refrigerators.
ltem NO | HB012 23346 |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
When should I replace my defrost thermostat?
If the defrost thermostat stops working, frost forms on the evaporator fins, and the temperature in the freezer rises. Replace the defrost thermostat with the manufacturer-approved freestanding freezer part if it's no longer working.
