Perfect Fit

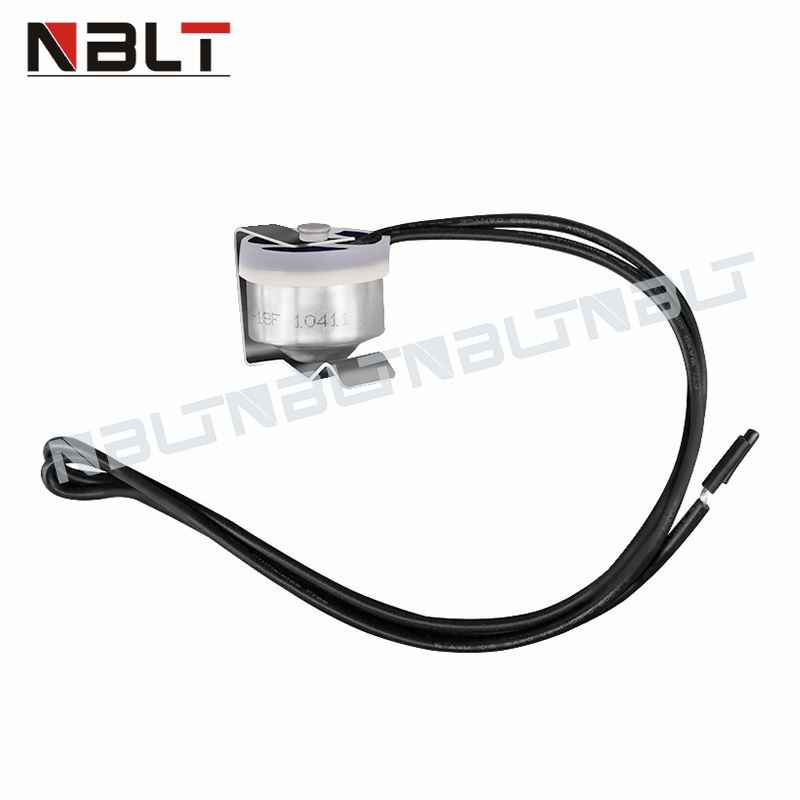

This thermostat fits and works exactly like the original part. It features a mounting clip, 2 wire leads, and bare wire ends. The kit also contains heat shrink wraps.
Fix symptoms: refrigerator too hot, freezer won't defrost, freezer too hot. Fixing yourself is simple and profitable. You can install it yourself in a few minutes.
Premium Quality: The replacement part is made of high-quality material and is well tested by the manufacturer. Fits OEM standards.
It works in the following cases:
1. Refrigerator is too hot
2. The freezer compartment is too hot.
3. Crema structure.
4. The refrigerator and freezer are too hot.
5. The freezer compartment does not defrost.
6. Refrigerator is too cold
7. The refrigerator works for too long.
ltem NO | PL002 6118A |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | stainless steel, epoxy resin,silver,copper |
Voltage | 120V/240V |
TEMPERATURE | OPEN:60F° CLOSE:32°F |
Differential | According to the requirement |
Cycle of endurance | 100,000 |
Tolerance | Refer to the regulation |
Resistive amps | 10A / 5A |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | 25.4mm(1″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample price | Free sample,USD 50 freight charge.Refund after mass order |
What happens when a defrost thermostat goes bad?
Defrost Thermostat Specifications. A faulty defrost termination thermostat may result in the defrost heater never heating and a solid frost buildup on the evaporator coil, which results in too warm temperatures. The thermostat contacts are normally closed and have continuity until it reaches 140 degrees.
