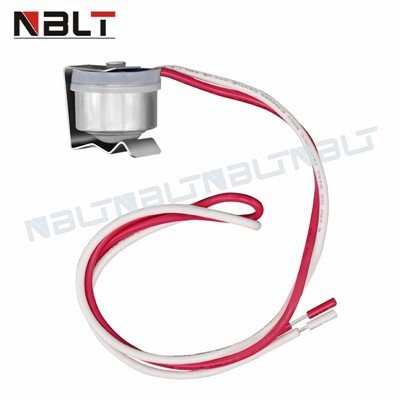

PREMIUM QUALITY: The replacement part is made from durable high-quality material and well-tested by the manufacturer- Meets OEM standards - Ensure long-lasting and effective performance. The thermostat is an L48-30F which means it opens at 48 degrees F and closes at 62 degrees F.
SAVE TIME SAVE MONEY: Inexpensive way to fix or repair a refrigerator and a freezer. It stops the fridge from overheating during the defrost cycle by protecting the evaporator. This clip-on thermostat will sense the temperature increase in the evaporator during the defrost process, and will cycle the defrost heater off after the ice or frost is melted. This part fixes the following symptoms: Leaking | Freezer not defrosting | Fridge too warm | Freezer section too warm.
EASY TO INSTALL: It is made exactly fit for most top name brands (Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Inglis, Crosley, Hoover, Amana, International, Caloric). Fits models: PL004 03591.
ltem NO | PL004 03591 |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.8mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
What is the thermostat function?
The thermostat is like a valve that opens and closes as a function of its temperature. The thermostat isolates the engine from the radiator until it has reached a certain minimum temperature. Without a thermostat, the engine would always lose heat to the radiator and take longer to warm up.
