Perfect Fit

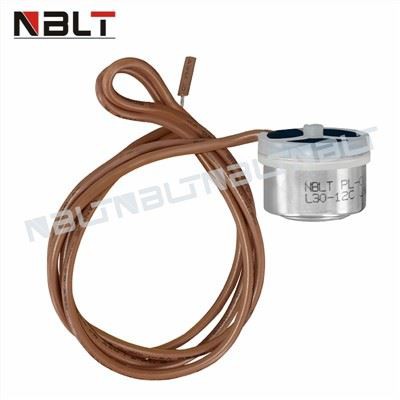

This thermostat fits and works exactly like the original part. It features a mounting clip, 2 wire leads, and bare wire ends. The kit also contains heat shrink wraps.
Fix symptoms: refrigerator too hot, freezer won't defrost, freezer too hot. Fixing yourself is simple and profitable. You can install it yourself in a few minutes.Premium Quality: The replacement part is made of high-quality material and is well tested by the manufacturer. Fits OEM standards.
It works in the following cases:
1. Refrigerator is too hot
2. The freezer compartment is too hot.
3. Crema structure.
4. The refrigerator and freezer are too hot.
5. The freezer compartment does not defrost.
6. Refrigerator is too cold
7. The refrigerator works for too long.
ltem NO | PL007 5184A |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | stainless steel, epoxy resin,silver,copper |
Voltage | 120V/240V |
TEMPERATURE | OPEN:60F° CLOSE:32°F |
Differential | According to the requirement |
Cycle of endurance | 100,000 |
Tolerance | Refer to the regulation |
Resistive amps | 10A / 5A |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | 25.4mm(1″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample price | Free sample,USD 50 freight charge.Refund after mass order |
What is the difference between defrost timer and defrost thermostat?
A defrost thermostat opens the heater circuit when the evaporator temperature rises above a preset temperature, 40°F (5°C) or more, thereby preventing excessive heating of the freezer compartment. The defrost timer is such that either the compressor or the defrost heater is on, but not both at the same time.
