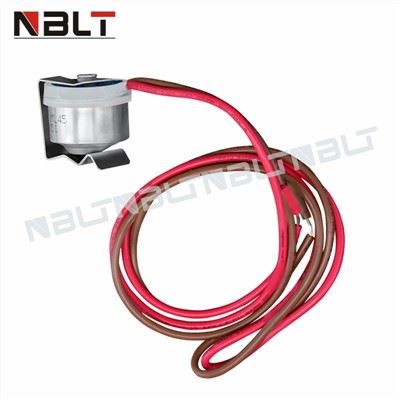

The PL002 20491Refrigerator Defrost Thermostat clips onto the evaporator and protects the evaporator from overheating during the defrost cycle. If your refrigerator won't defrost, you can test both the thermostat and heater to find out which part is at fault.
Fixes the following symptoms:
Refrigerator Too Hot Freezer Will Not Defrost Freezer Section Too Hot Refrigerator Too Cold.
ltem NO | PL002 20491 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | stainless steel, epoxy resin,silver,copper |
Voltage | 120V/240V |
TEMPERATURE | OPEN:60F° CLOSE:32°F |
Differential | According to the requirement |
Cycle of endurance | 100,000 |
Tolerance | Refer to the regulation |
Resistive amps | 10A / 5A |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | 25.4mm(1″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample price | Free sample,USD 50 freight charge.Refund after mass order |
Is a defrost thermostat normally open or normally closed?
The defrost thermostat should be in a closed position when cold. Check to be sure the thermostat is opening at the correct temperature by placing it in water and slowly heating the water. Defrost thermostats are designed to open between 40 degrees and 90 degrees Fahrenheit.
