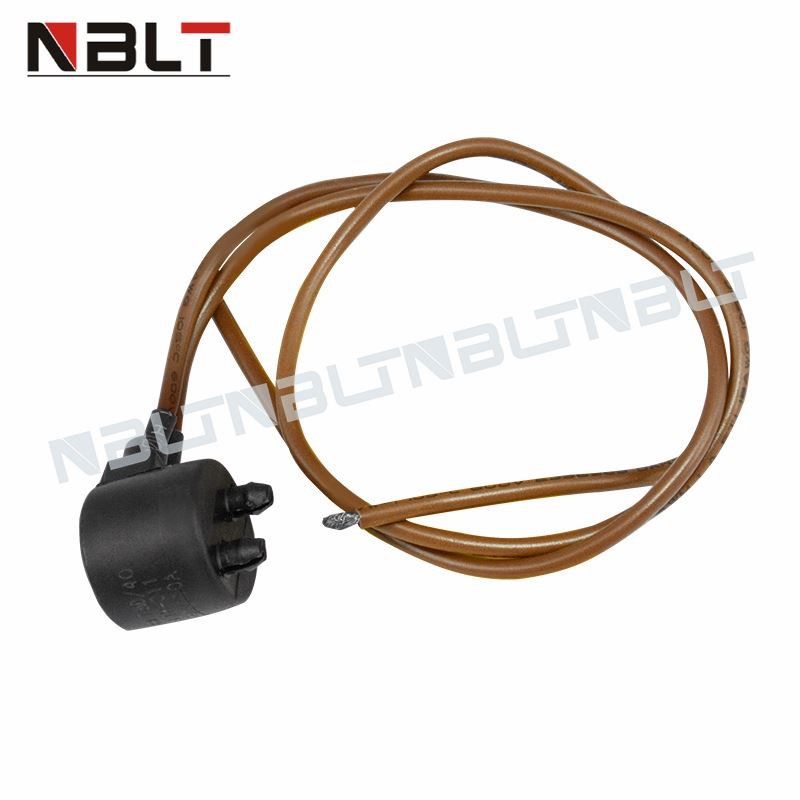

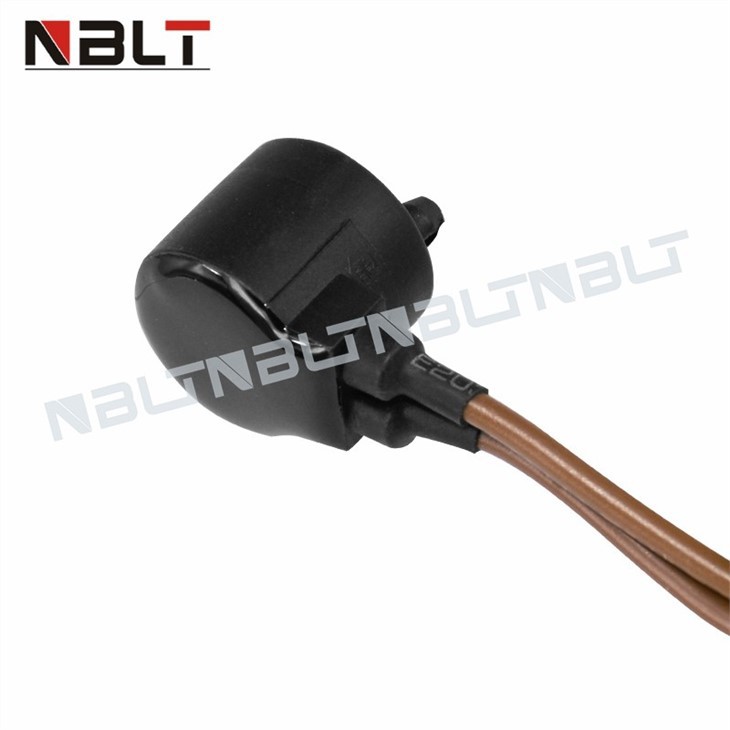

Bimetal Defrost Thermostat stops the fridge from overheating during the defrost cycle by protecting the evaporator. This clip-on thermostat will sense the temperature increase in the evaporator during the defrost process, and will cycle the defrost heater off after the ice or frost is melted. The most common reasons for needing to replace this part are if your unit is leaking, has inconsistent temperatures (too hot or too cold), you are seeing a buildup of ice, or your appliance is running too long.
ltem NO | ELTH-011 02449 |
Use | Defrost/Temperature control/Protection |
Appliance | Refrigerators, Freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 10A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.7mm(1/2″) |
Wire Leads | Color: Red Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
What are the symptoms of a bad defrost thermostat?
A faulty defrost termination thermostat may result in the defrost heater never heating and a solid frost buildup on the evaporator coil, which results in too warm temperatures. The thermostat contacts are normally closed and have continuity until it reaches 140 degrees.
